Part Number:IST-PT10A

Dimension:10.0 * 3.2mm

Rated Voltage:10Vp-p

Resonant Frequency:3200±500HZ

SPL:≥80dB@10cm

Current:≤5mA

Operating Voltage:1~30Vp-p

Part Number:IST-PT13A

Dimension:12.6 * 7.0mm

Rated Voltage:6Vp-p

Resonant Frequency:4000±500HZ

SPL:≥82dB@10cm

Current:≤2mA

Operating Voltage:1~20Vp-p

Part Number:IST-PT14A

Dimension:14.0 * 7.0mm

Rated Voltage:5Vp-p

Resonant Frequency:4000±500HZ

SPL:≥80dB@10cm

Current:≤3mA

Operating Voltage:1~25Vp-p

Part Number:IST-PT22A

Dimension:22.0 * 7.2mm

Rated Voltage:9Vp-p

Resonant Frequency:4000±500HZ

SPL:≥85dB@10cm

Current:≤2mA

Operating Voltage:1~30Vp-p

Part Number:IST-PT24A

Dimension:24.0 * 15.0mm

Rated Voltage:12Vp-p

Resonant Frequency:3700±500HZ

SPL:≥90dB@10cm

Current:≤5mA

Operating Voltage:1~30Vp-p

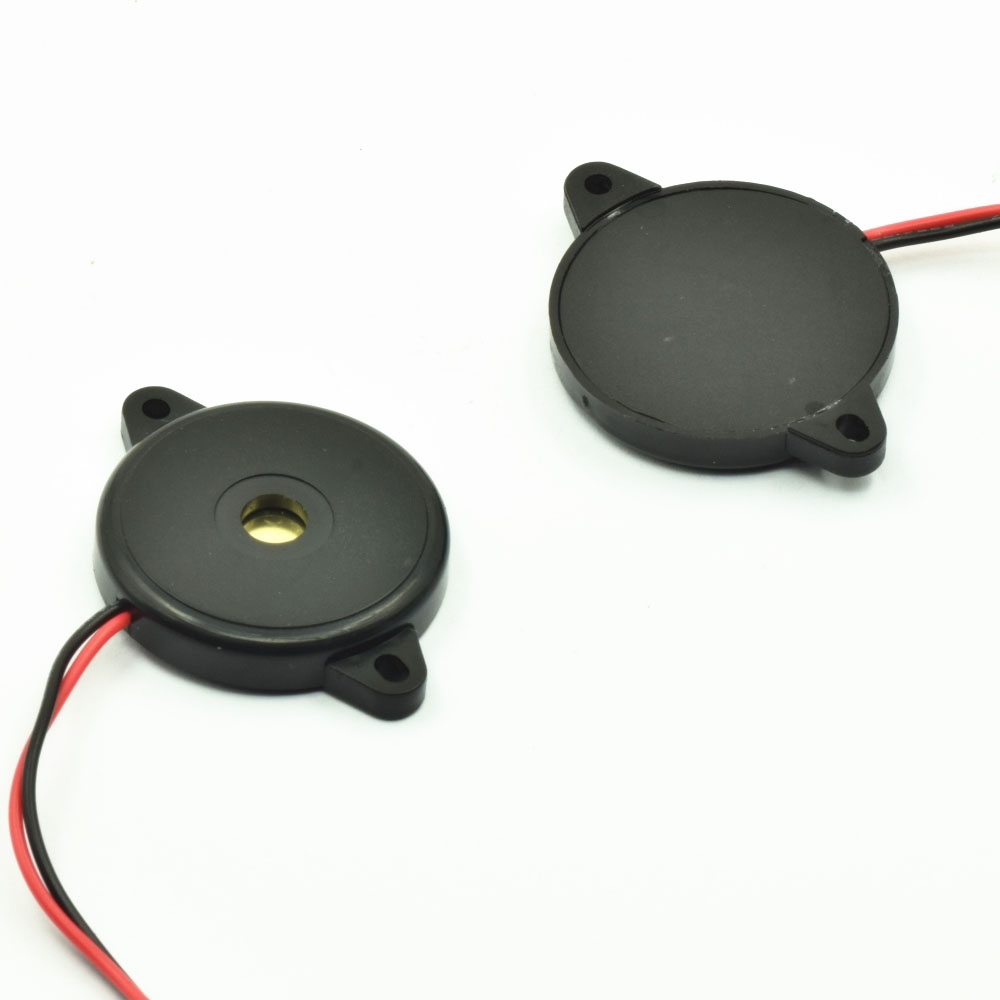

Part Number:IST-PT30A

Dimension:30.0 * 5.4mm

Rated Voltage:12Vp-p

Resonant Frequency:1300±500HZ

SPL:≥85dB@10cm

Current:≤3.5mA

Operating Voltage:1~40Vp-p

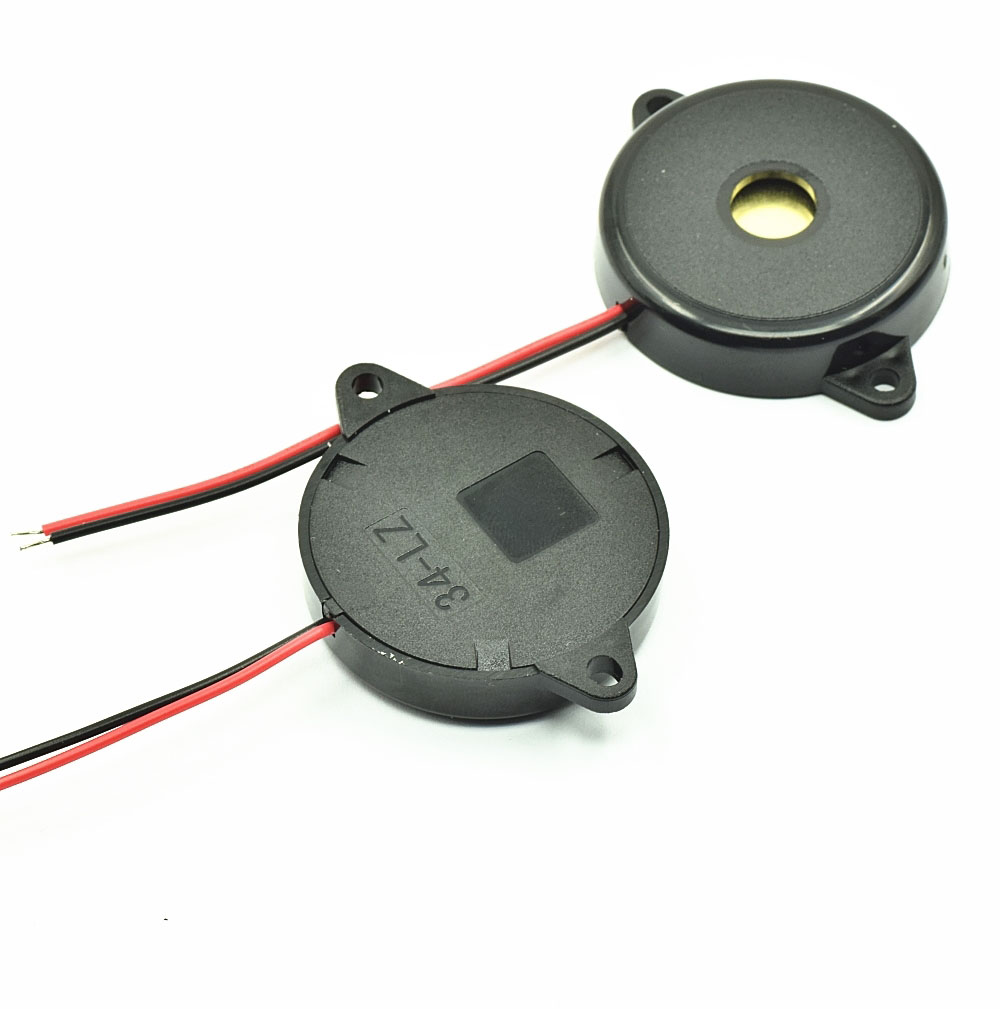

Part Number:IST-PT35A

Dimension:34.3 * 9.0mm

Rated Voltage:12Vp-p

Resonant Frequency:1600±500HZ

SPL:≥90dB@10cm

Current:≤9mA

Operating Voltage:3~30Vp-p

Part Number:IST-PT52A

Dimension:52.0 * 23.0mm

Rated Voltage:18Vp-p

Resonant Frequency:4000±500Hz

SPL:≥90dB@10cm

Current:≤15mA

Operating Voltage:3~60Vp-p

Part Number:IST-PT14C

Dimension:14.0 * 4.0mm

Rated Voltage:10Vp-p

Resonant Frequency:4800±500Hz

SPL:≥80dB@10cm

Current:≤2mA

Operating Voltage:1~30Vp-p

Part Number:IST-PT17D（wiring）

Dimensio:16.5 * 4.0mm

Rated Voltage:9Vp-p

Resonant Frequency:4000±500HZ

SPL:≥82dB@10cm

Current:≤2mA

Operating Voltage:1~30Vp-p
