Focus on R&D, production and sales

A manufacturing enterprise for all kinds of electroacoustic components

Part Number:ISTO-P1040H07T

Dimension:10 * 7mm

Construction:Open Type

Directivity:80°±15°(-6dB)

SPL:≥105dB (10V/30cm/sine wave)

Nominal Frequency:40±1.0KHz

Using Method:Transmitter

Part Number:ISTO-P1040H07R

Dimension:10 * 7mm

Construction:Open Type

Directivity:60°±15°(-6dB)

Sensitivity:≥-67dB

Nominal Frequency:40±1.0KHz

Using Method:Receiver

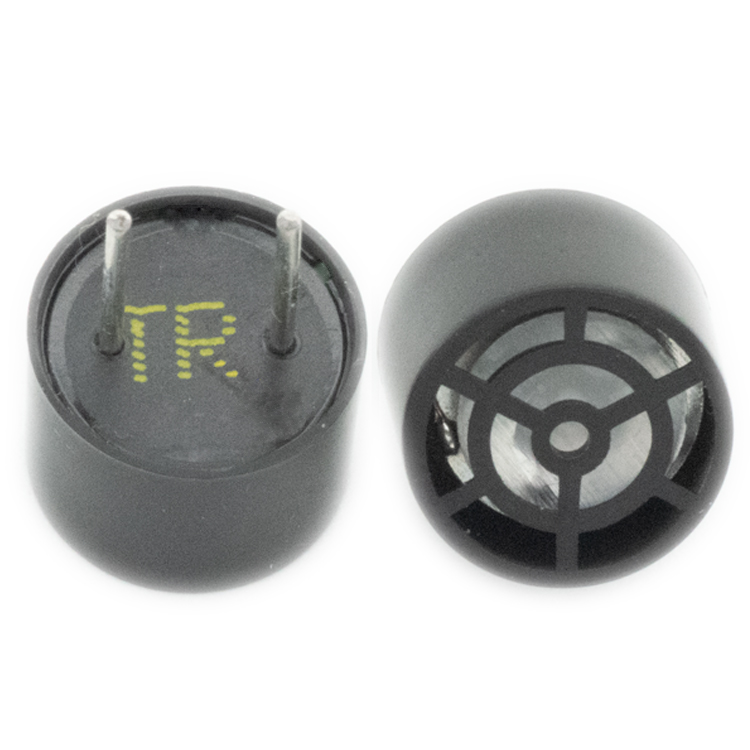

Part Number:ISTO-P1040H07TR

Dimension:10 * 7mm

Construction:Open Type

Directivity:80°±15°(-6dB)

SPL:≥105dB (10V/30cm/sine wave)

Sensitivity:≥-75dB

Nominal Frequency:39±1.0KHz

Using Method:Transmitter&Receiver

Part Number:ISTO-A1040H07T

Dimension:10 * 7mm

Construction:Open Type

Directivity:70°±15°(-6dB)

SPL:≥110dB (10V/30cm/sine wave)

Nominal Frequency:40±1.0KHz

Using Method:Transmitter

Part Number:ISTO-A1040H07R

Dimension:10 * 7mm

Construction:Open Type

Directivity:80°±15°(-6dB)

Sensitivity:≥-75dB

Nominal Frequency:40±1.0KHz

Using Method:Receiver

Part Number:ISTO-A1040H07TR

Dimension:10 * 7mm

Construction:Open Type

Directivity:80°±15°(-6dB)

SPL:≥105dB (10V/30cm/sine wave)

Sensitivity:≥-75dB

Nominal Frequency:40±1.0KHz

Using Method:Transmitter&Receiver

Part Number:ISTO-A1240H09T

Dimension:12 * 9mm

Construction:Open Type

Directivity:75°±15°(-6dB)

SPL:≥110dB (10V/30cm/sine wave)

Nominal Frequency:40±1.0KHz

Using Method:Transmitter

Part Number:ISTO-A1240H09R

Dimension:12 * 9mm

Construction:Open Type

Directivity:80°±15°(-6dB)

Sensitivity:≥-75dB

Nominal Frequency:40±1.0KHz

Using Method:Receiver

Part Number:ISTO-P1640H12T

Dimension:16 * 40mm

Construction:Open Type

Directivity:80°±15°(-6dB)

SPL:≥115dB (10V/30cm/sine wave)

Nominal Frequency:40±1.0KHz

Using Method:Transmitter
