Focus on R&D, production and sales

A manufacturing enterprise for all kinds of electroacoustic components

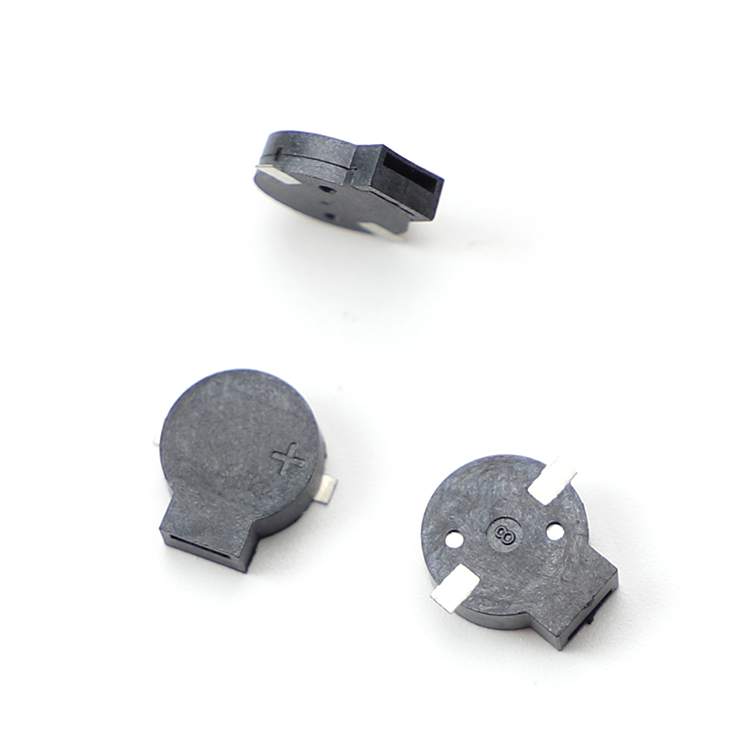

Part Number:IST-09ET03BR16V5

Dimension:9.0 * 3.2 mm

Rated Voltage:5Vp-p

Resonant Frequency:2731±500Hz

SPL:≥85dB@10cm

Current:≤80mA

Operating Voltage:3 - 8 Vp-p

Part Number:IST-11PT02A

Dimension:11.0* 11.0 * 1.7mm

Rated Voltage:5Vp-p

Resonant Frequency:4100±500Hz

SPL:≥70dB@10cm

Current:≤3mA

Operating Voltage:1~25Vp-p

Part Number:IST-12PT03A

Dimension:12.0 * 12.0 *3.0mm

Rated Voltage:3Vp-p

Resonant Frequency:4000±500Hz

SPL:≥75dB@10cm

Current:≤5mA

Operating Voltage:1~20Vp-p

Part Number:IST-12PT03B

Dimension:12.0 * 12.0 * 3.0mm

Rated Voltage:5Vp-p

Resonant Frequency:4100±500Hz

SPL:≥83dB@10cm

Current:≤5mA

Operating Voltage:1 ~25Vp-p

Part Number:IST-PT10A

Dimension:10.0 * 3.2mm

Rated Voltage:10Vp-p

Resonant Frequency:3200±500HZ

SPL:≥80dB@10cm

Current:≤5mA

Operating Voltage:1~30Vp-p

Part Number:IST-PT13A

Dimension:12.6 * 7.0mm

Rated Voltage:6Vp-p

Resonant Frequency:4000±500HZ

SPL:≥82dB@10cm

Current:≤2mA

Operating Voltage:1~20Vp-p

Part Number:IST-PT14A

Dimension:14.0 * 7.0mm

Rated Voltage:5Vp-p

Resonant Frequency:4000±500HZ

SPL:≥80dB@10cm

Current:≤3mA

Operating Voltage:1~25Vp-p

Part Number:IST-PT22A

Dimension:22.0 * 7.2mm

Rated Voltage:9Vp-p

Resonant Frequency:4000±500HZ

SPL:≥85dB@10cm

Current:≤2mA

Operating Voltage:1~30Vp-p

Part Number:IST-PT24A

Dimension:24.0 * 15.0mm

Rated Voltage:12Vp-p

Resonant Frequency:3700±500HZ

SPL:≥90dB@10cm

Current:≤5mA

Operating Voltage:1~30Vp-p
